TOPIC

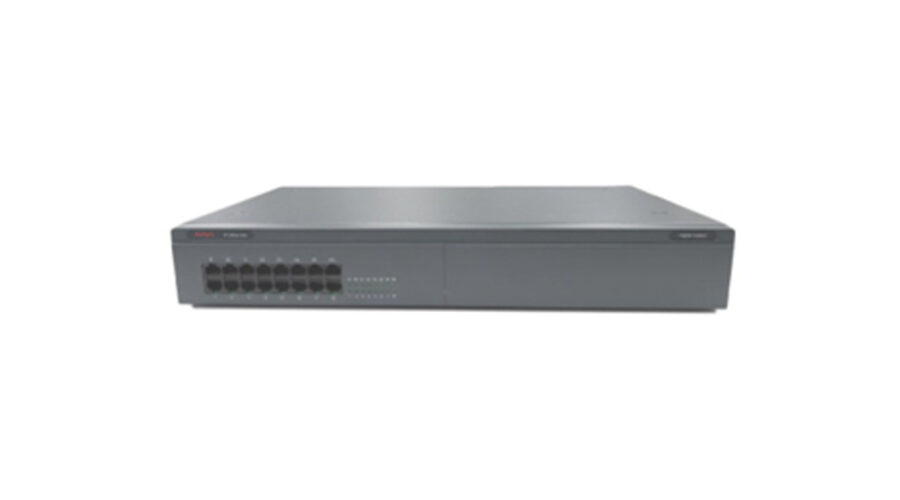

AVAYA IP500 DIGITAL STATION 16 MODULE
PART CODE
700449499, 700501516
DESCRIPTION
The IP500 Digital Station 16 provides 16 additional digital station ports for your Avaya IP Office system.
FEATURES
- Provides an additional 16 digital station (DS) ports for digital telephones
- Same functionality as the IP400 Digital Station 16 V2 but with matching exterior of IP500 control unit
COMPATIBILITY
- Supported by IP Office core software level 2.1(31) minimum
- IP403, IP406 V1, IP406 V2, and IP412 IP500 running R4.2 or earlier; Professional Edition is required
- IP500 running R5.0 or higher
- IP500 V2 control unit running R6.0 or higher
- Digital station ports for use with 1400, 2400, and 5400 series digital telephones; also compatible with 9500 series digital phones on IP Office R7.0 or higher
- Compatible with 3810 wireless telephones
INCLUDED
- Power supply unit and Expansion Interconnect cable
POWER SUPPLY
- The module is supplied with an Earthed 3-Pin, 60W external power supply unit. The PSU has an integral power cord for connection to the module’s DC I/P socket. A locale specific IEC60320 C13 power cord for the external PSU is required but is not supplied with the module.
DIMENSIONS
- Width: 445mm/17.5″. Depth: 245mm/9.7″. Height: 71mm/2.8″
WEIGHT
- Unboxed: 3.5Kg/7.8lbs. Boxed: 4.8Kg/10.8lbs. (Based on DS 16 )
